2026 Cimarron Trailers 28 x 8 Lonestar - 017806

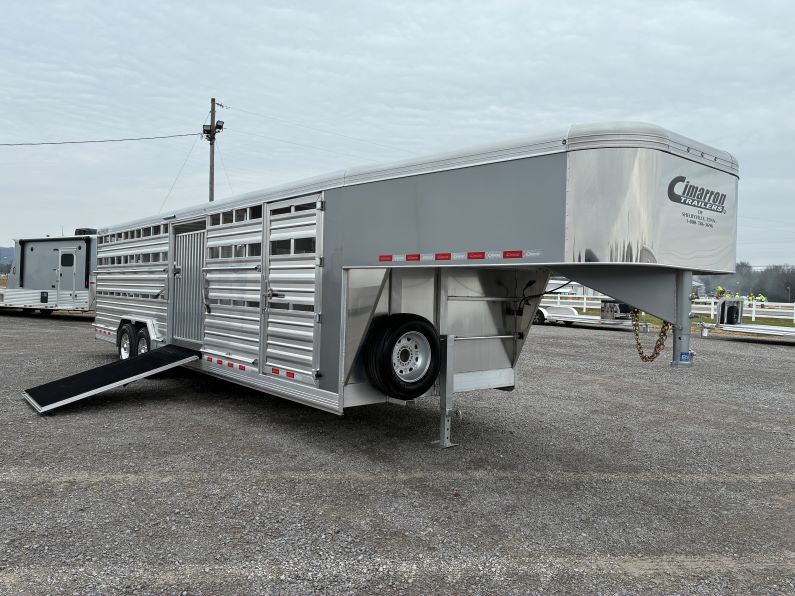

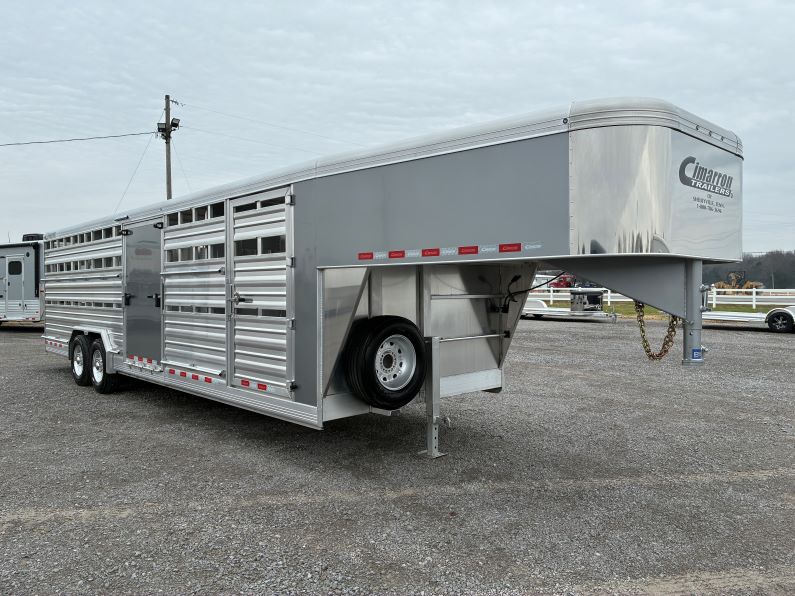

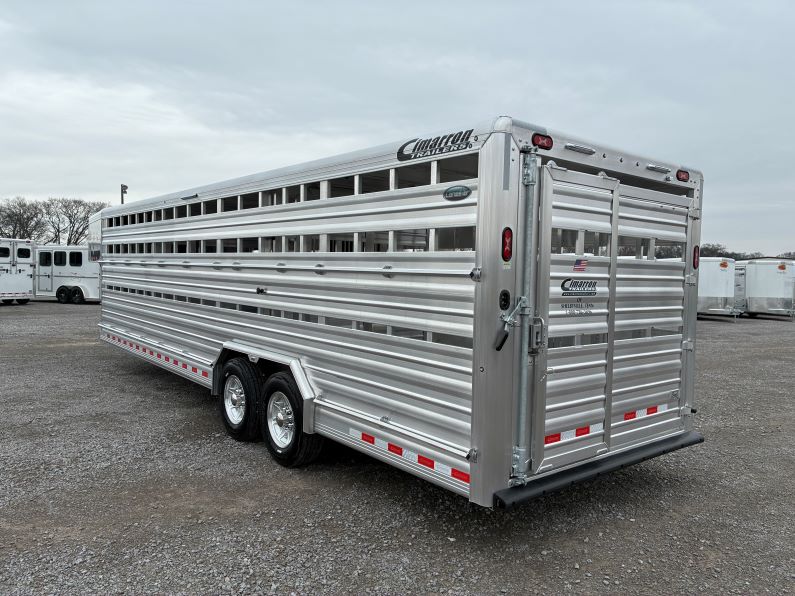

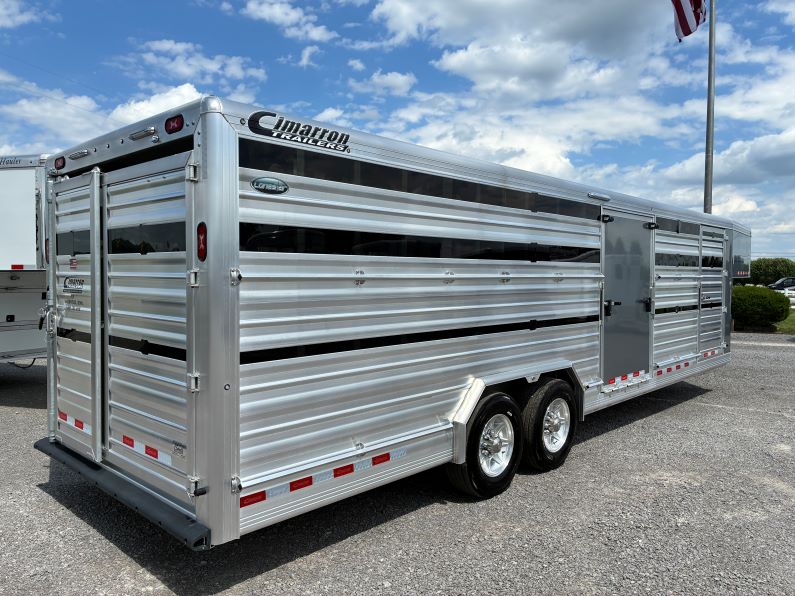

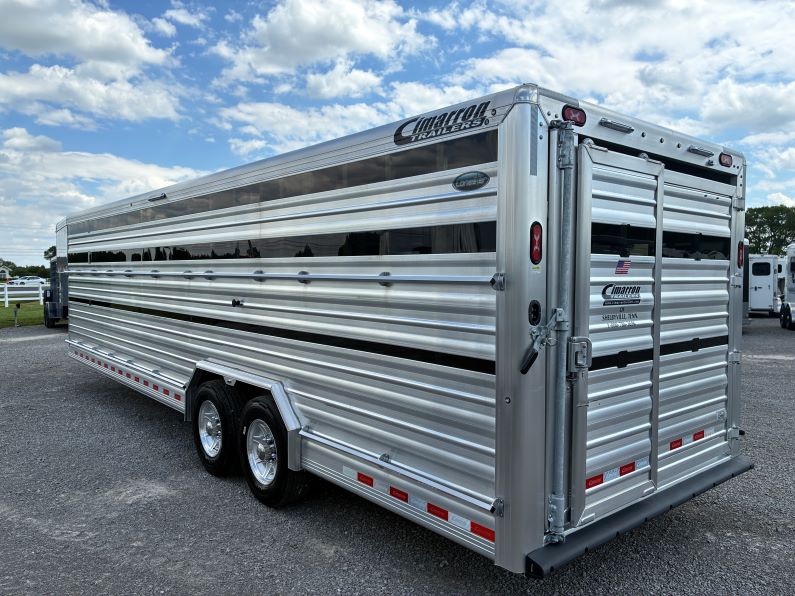

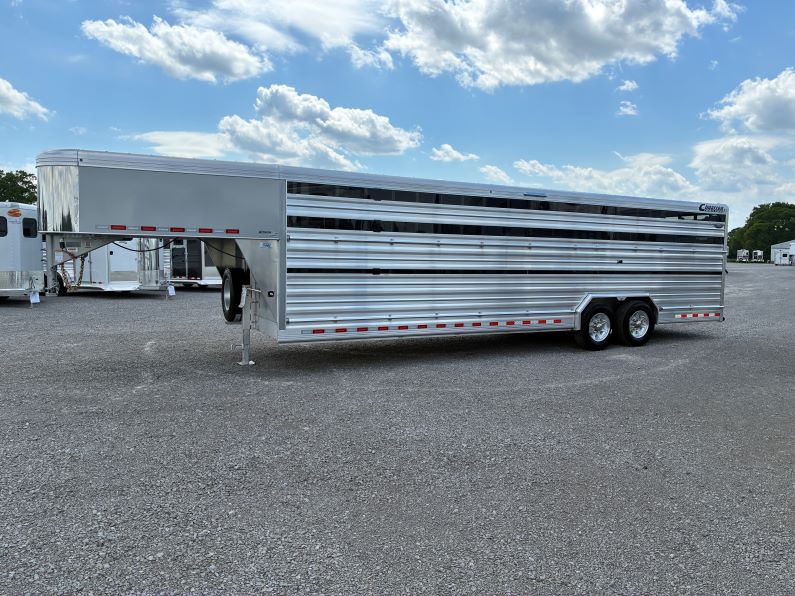

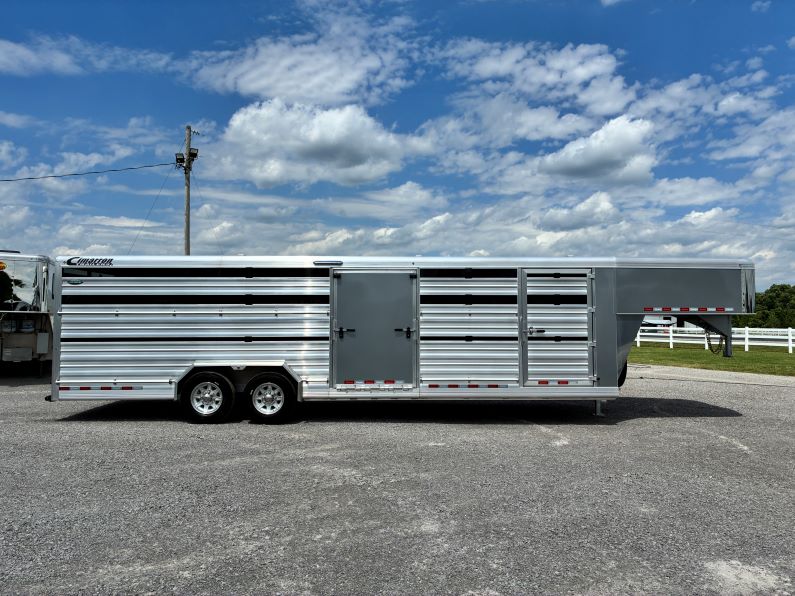

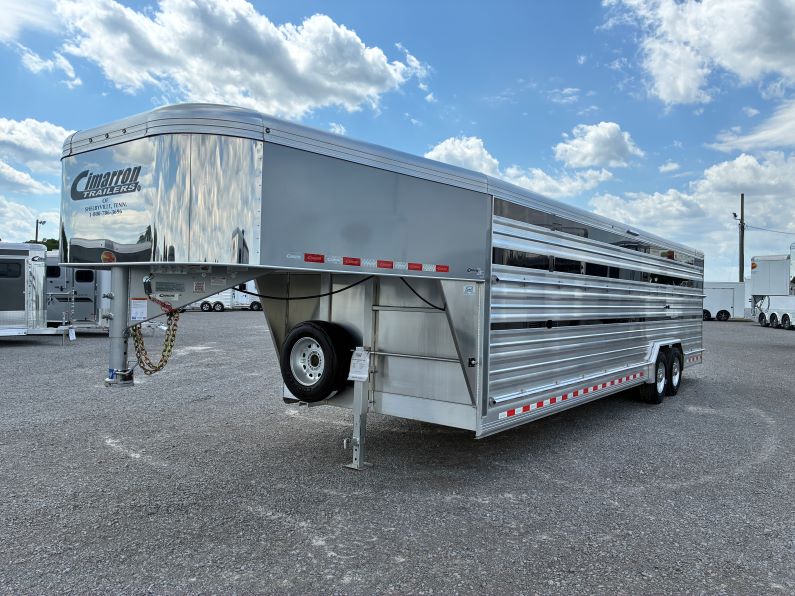

2026 Cimarron Lonestar 28x8 Livestock Trailer

Dimensions & Capacities

• 28' Floor Length
• 36' Long Overall
• 8' Wide
• 6'8" Tall
• 8,000lb.(each) Rubber Torsion Axles
• 4 Wheel Electric Brakes

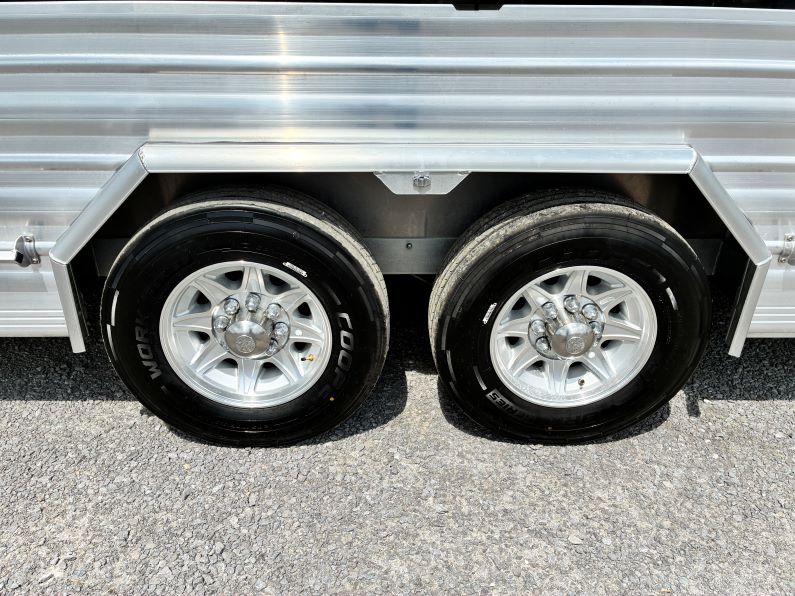

• 245/75R17.5 Cooper Tires on Aluminum Wheels 18 Ply LRJ
• 5,850lb. Empty Weight

Upgraded Features

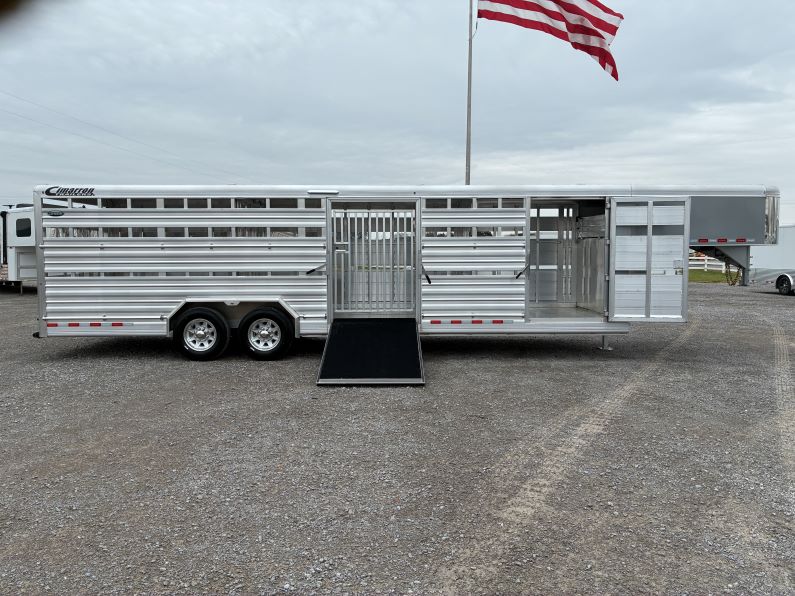

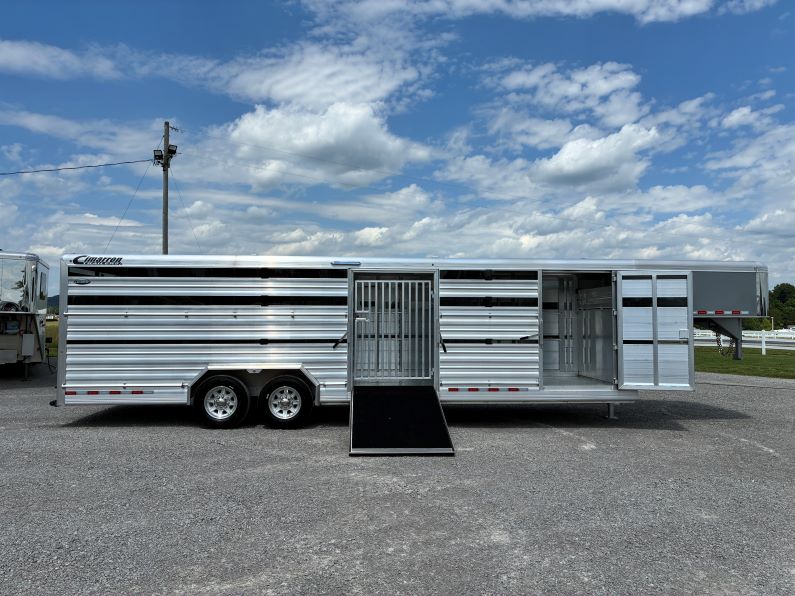

• Side Ramp 48" w/ Gate Behind

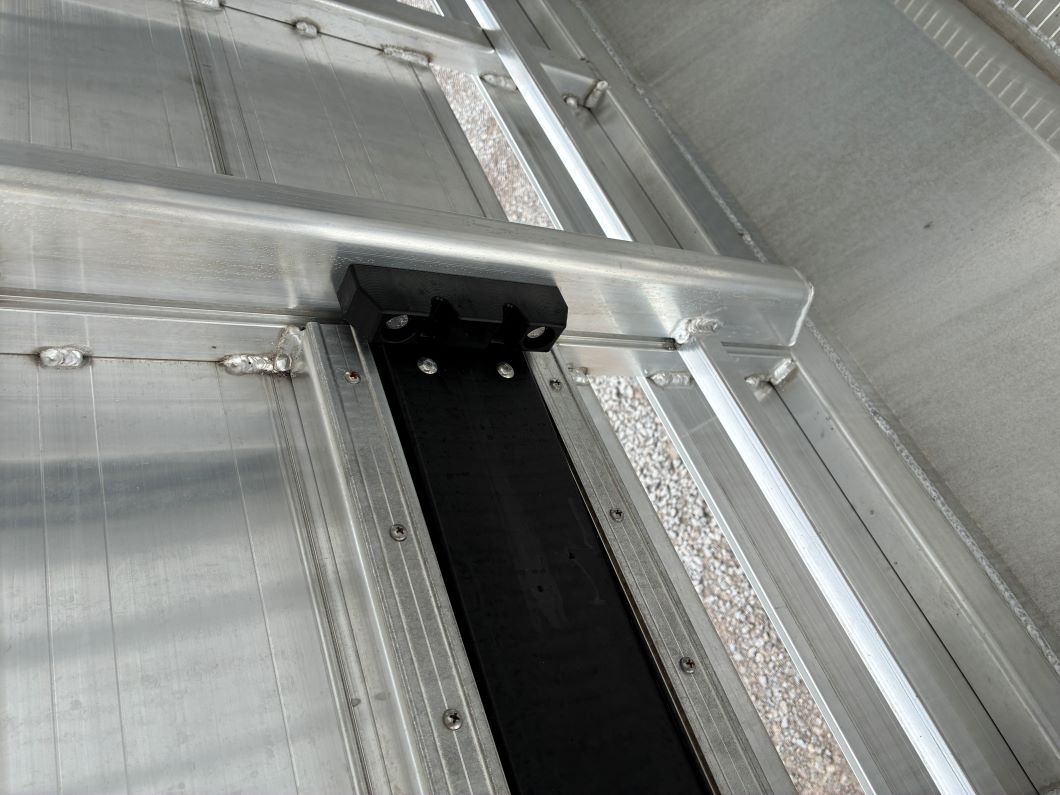

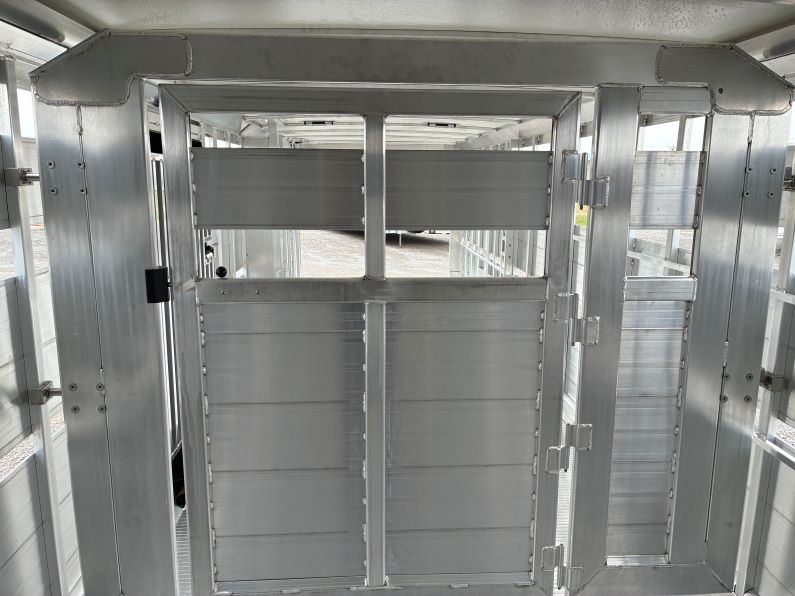

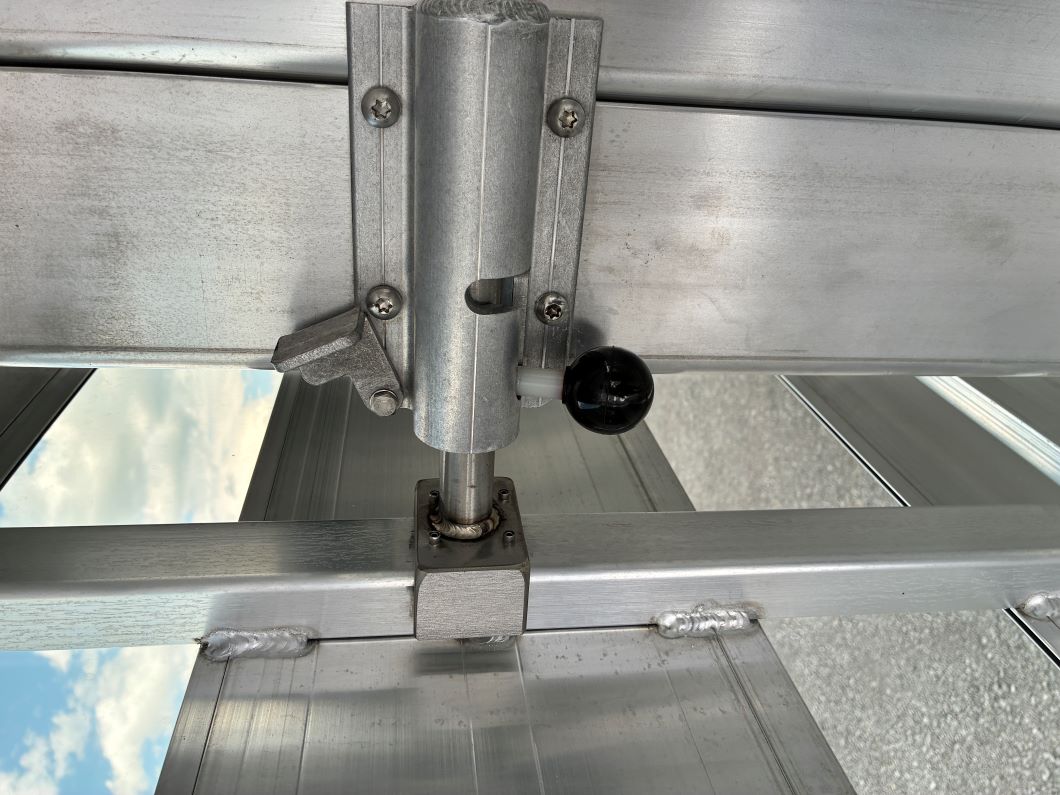

• Front Gate has 10' of Travel
• 3 Air Gap Sides
• Plexiglass Inserts Included but not shown

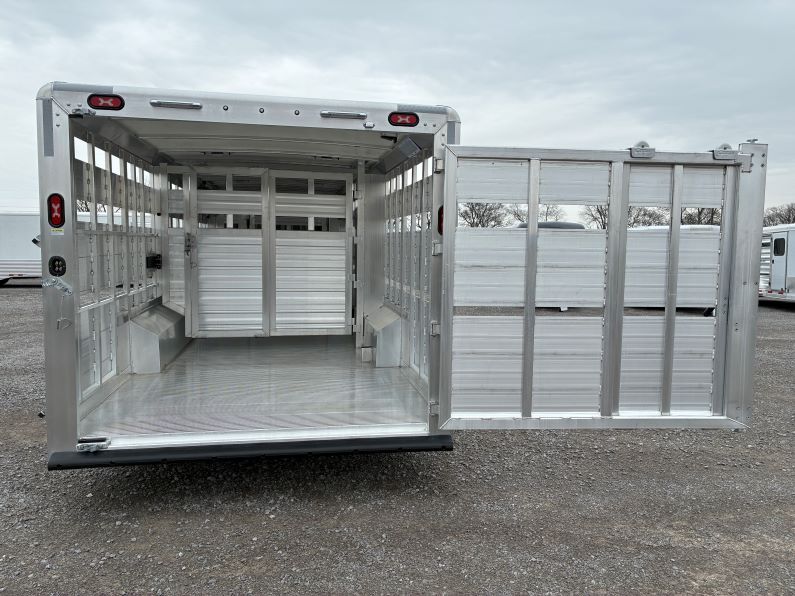

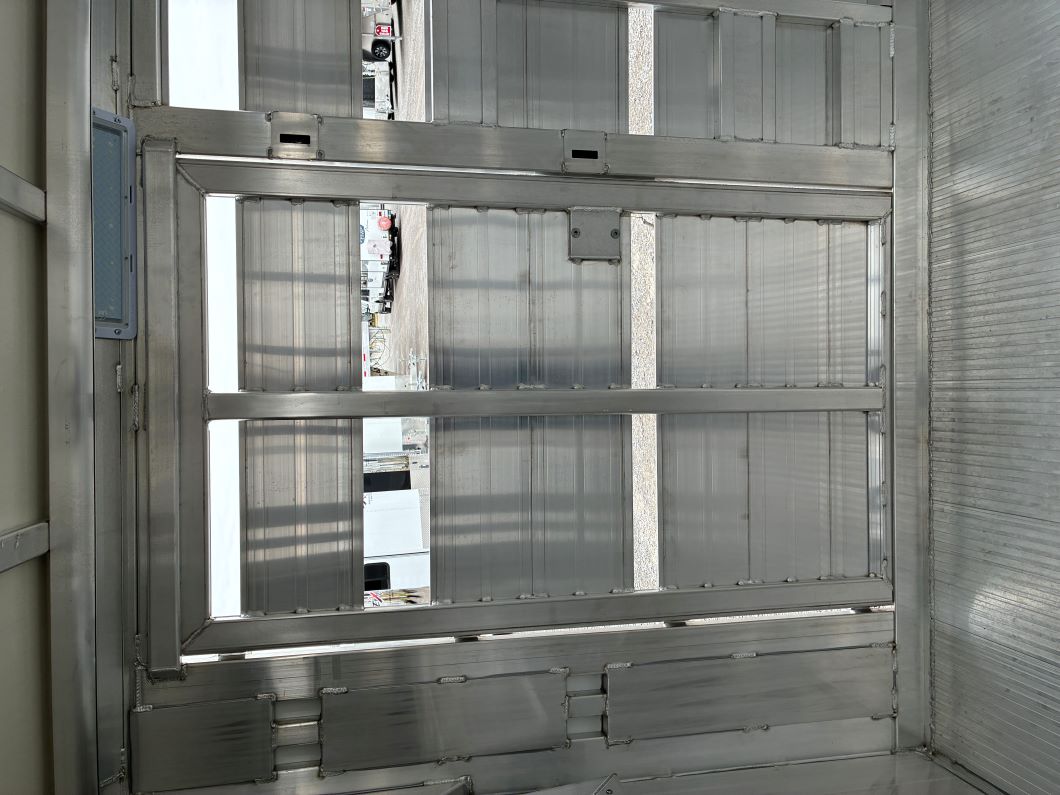

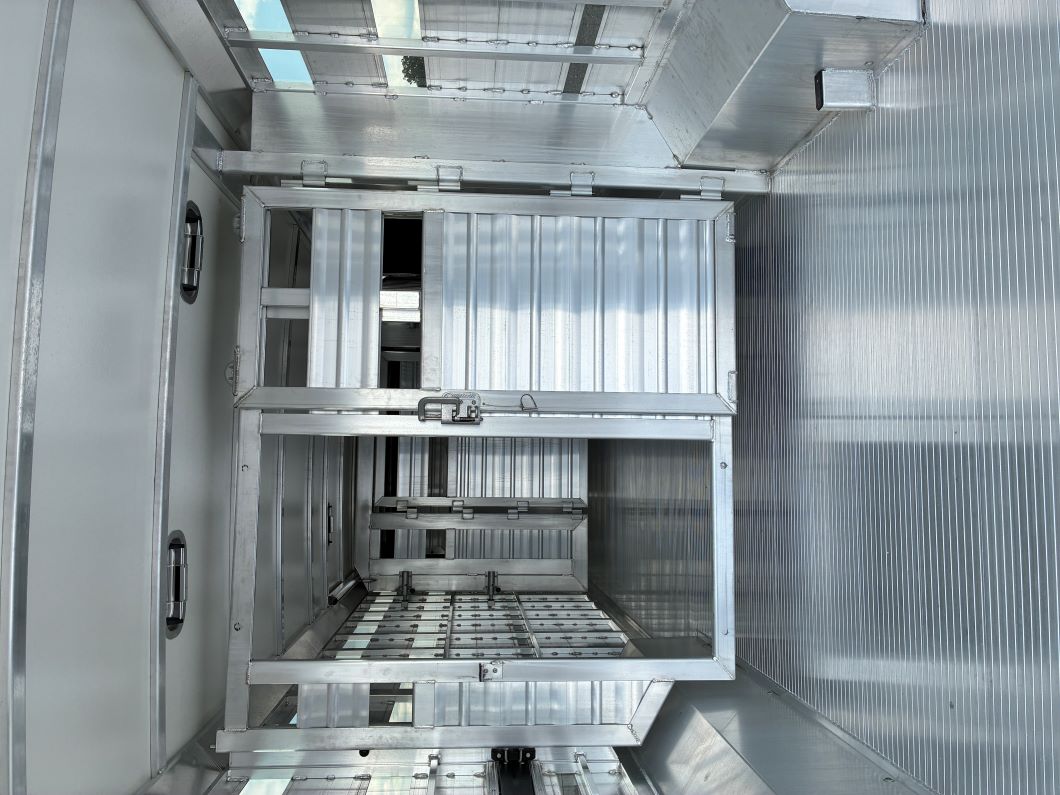

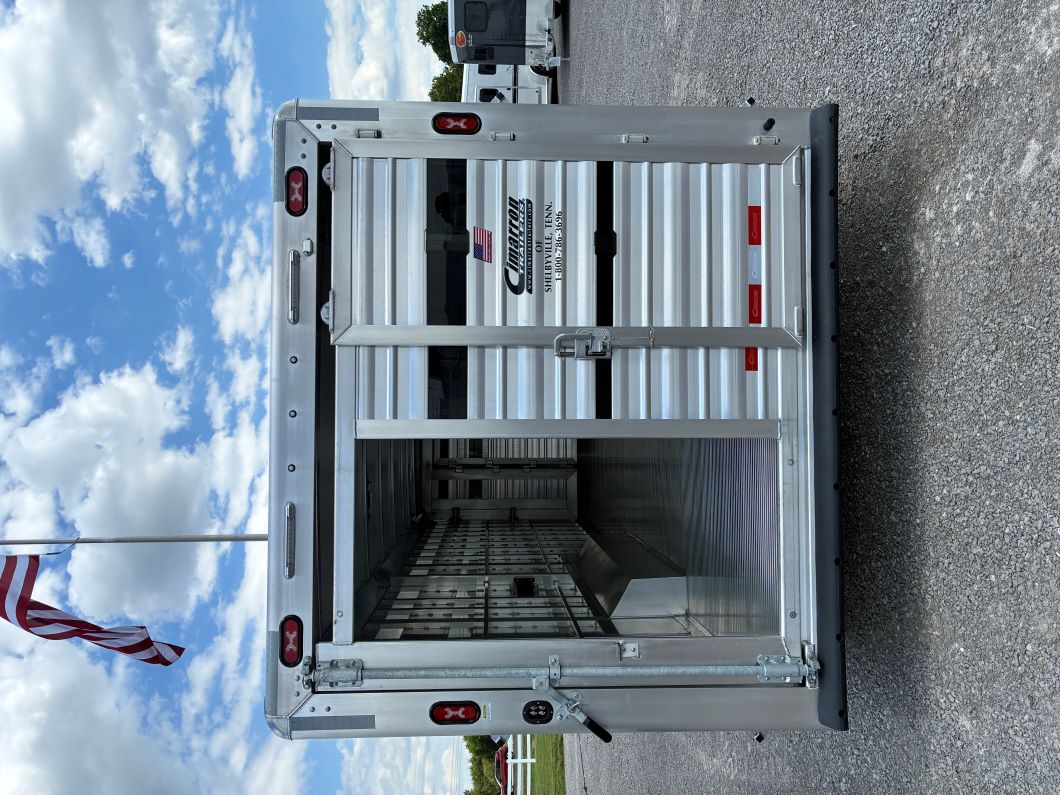

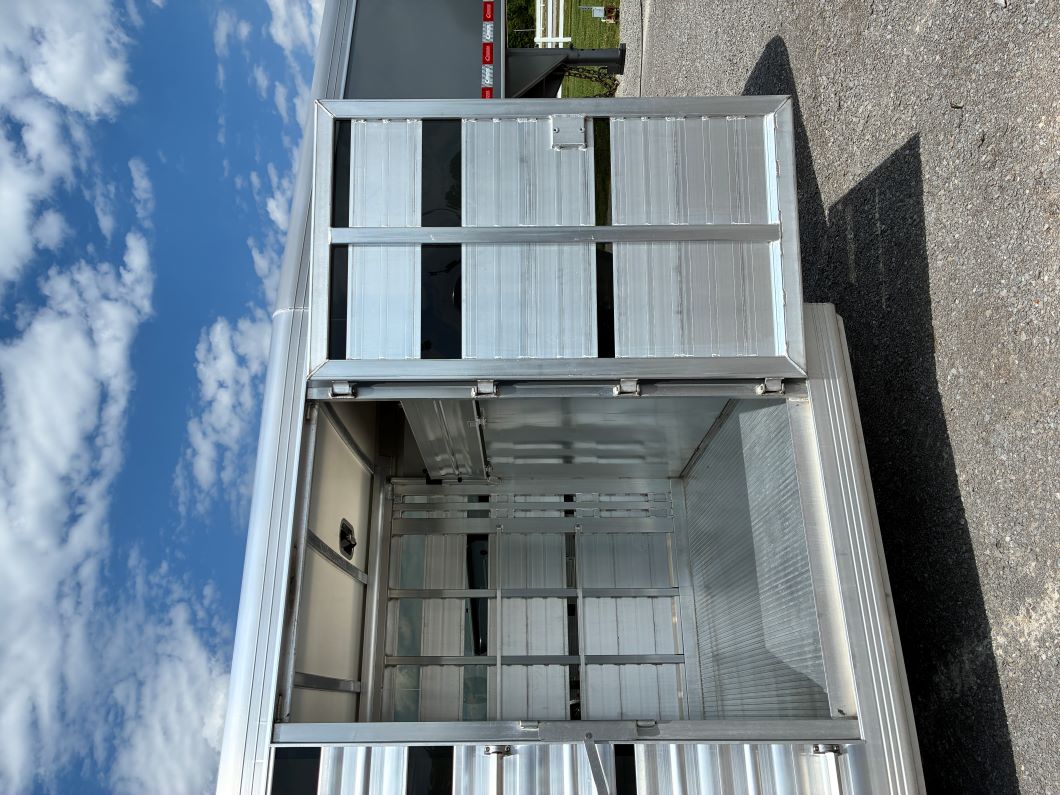

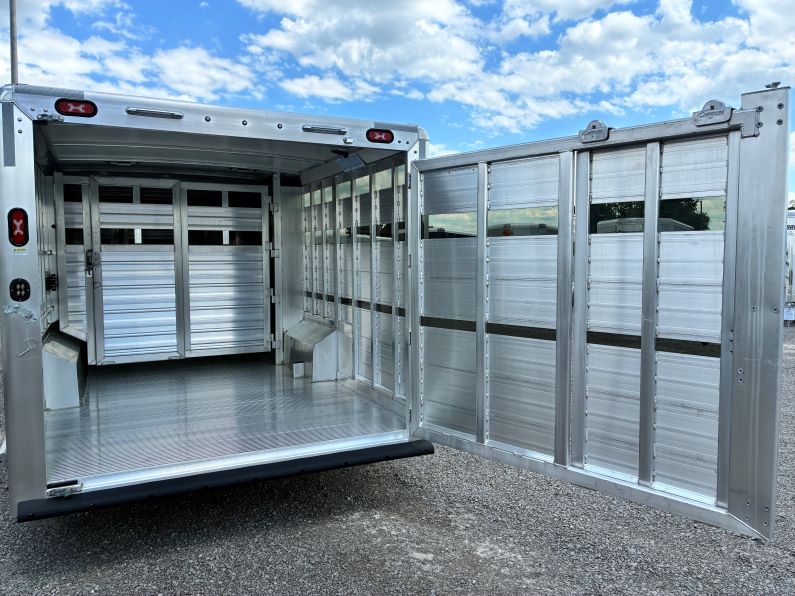

• Rear Cutgate 9' from Back of trailer
• Outside Tie Rail Hi & Low Both Sides
• Inside Tie Rail Hi & Low Street Side

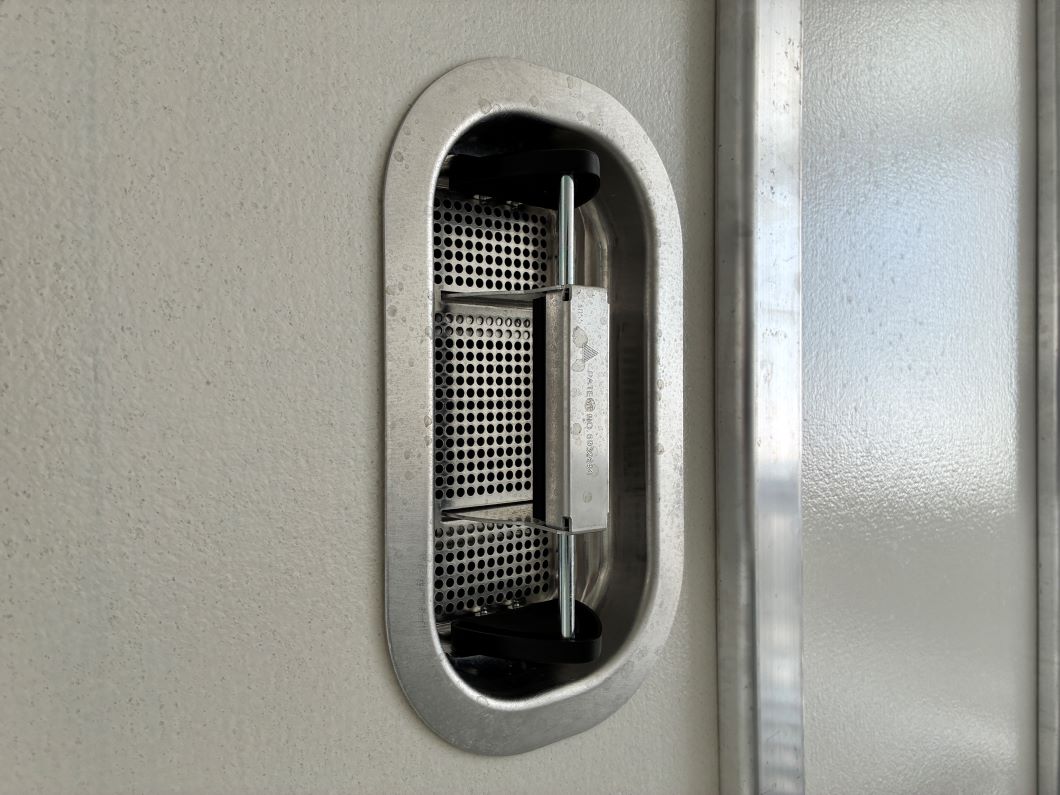

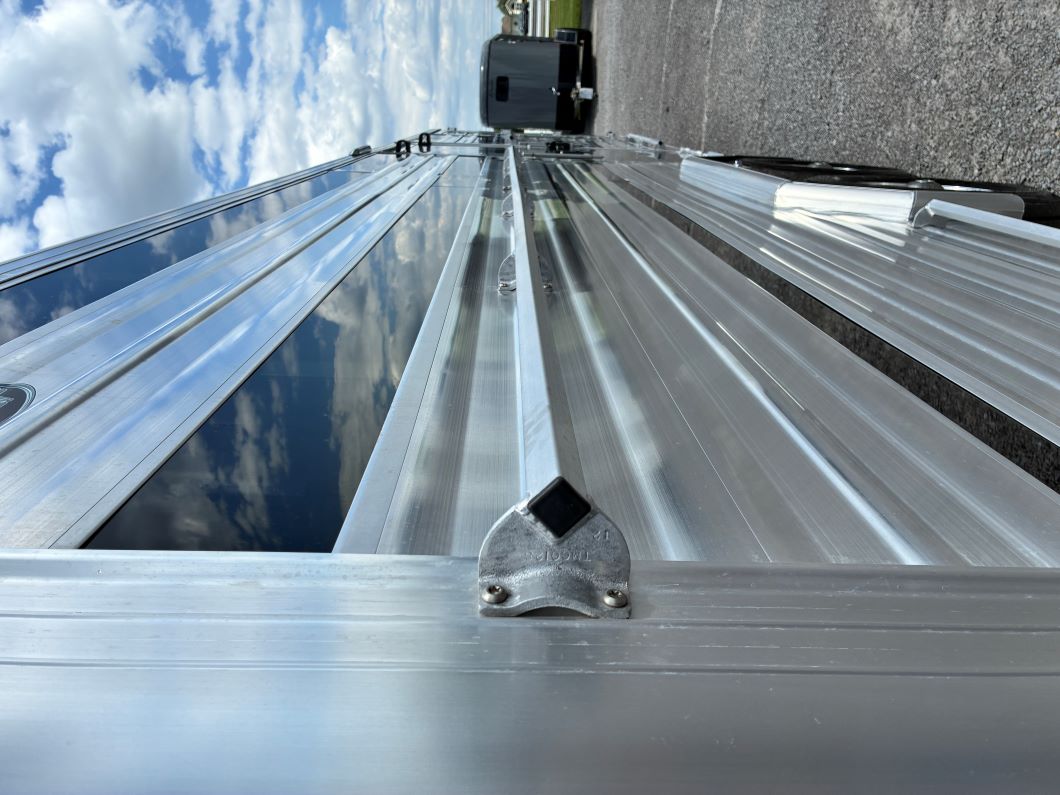

• 6 Pop Up Roof Vents
• Silver Exterior Paint on Side Sheets

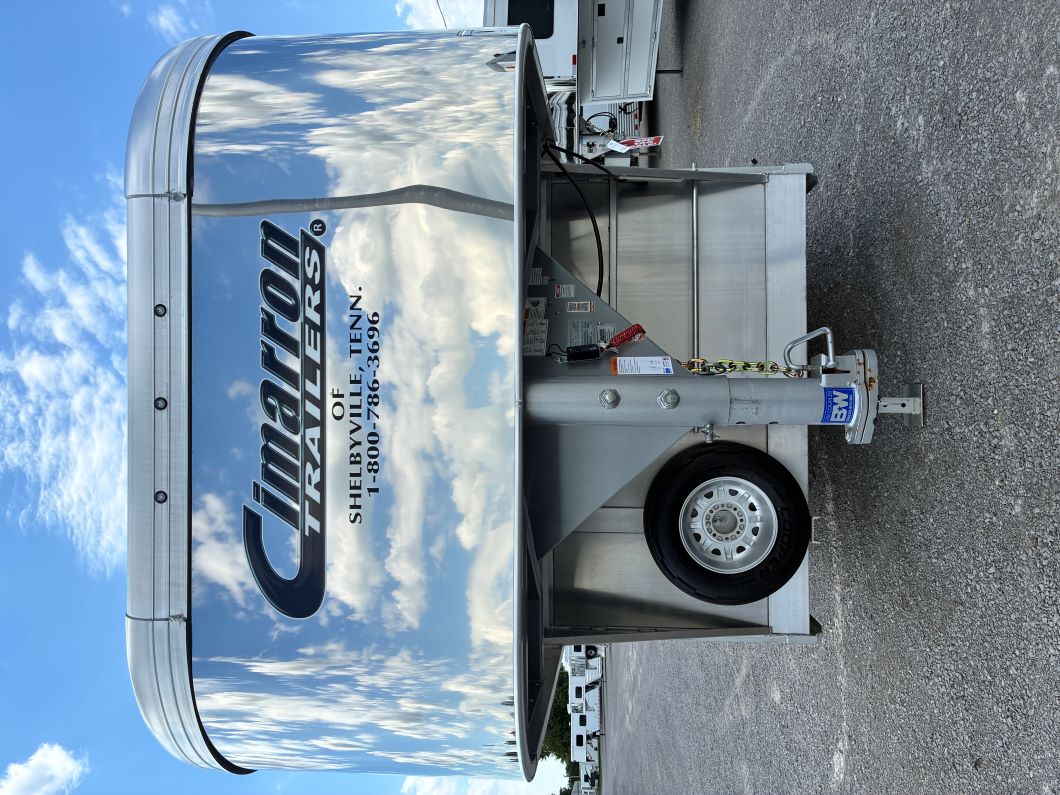

• Stainless Nose Wrap

Trailer Features

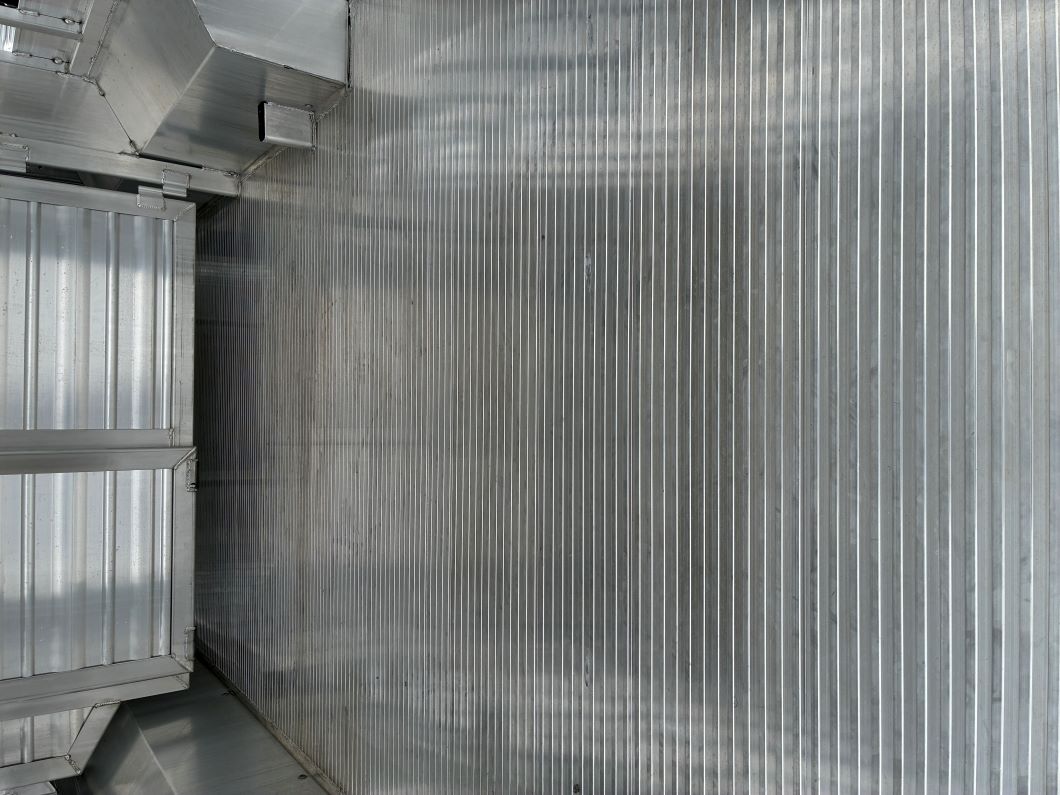

• V Truss Interlocking Floorplank - Supports Every 4"

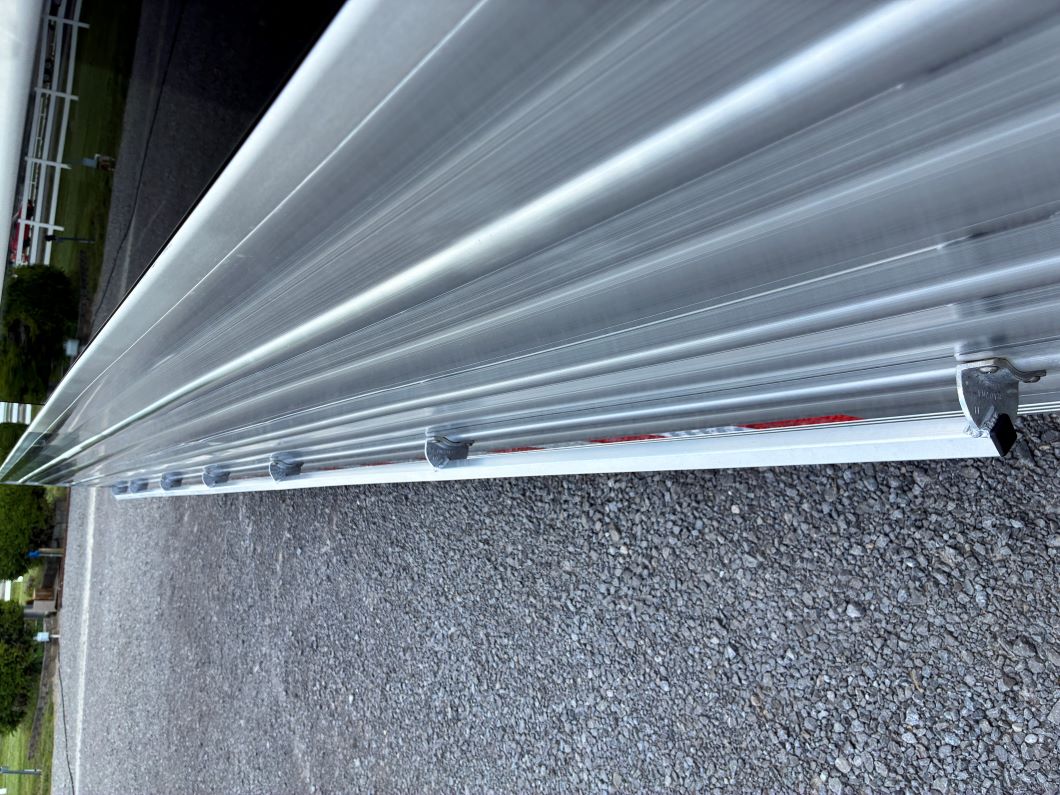

• HD Bottom Rail w/ Full Length Rocker Panel

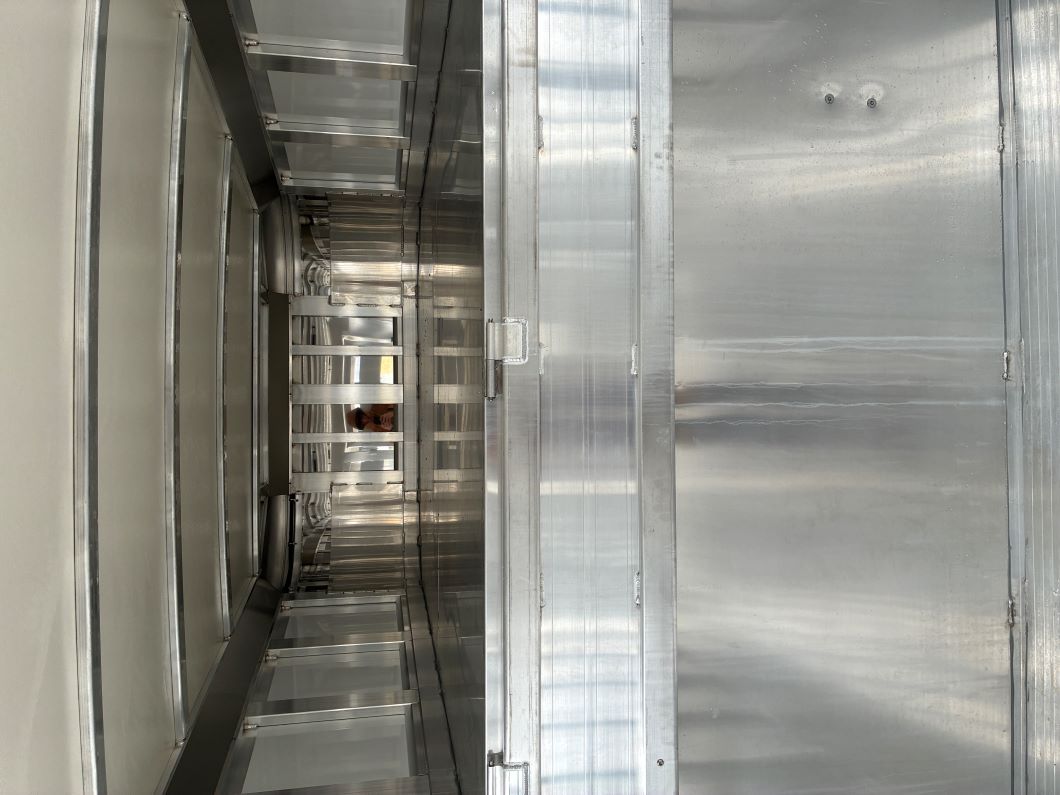

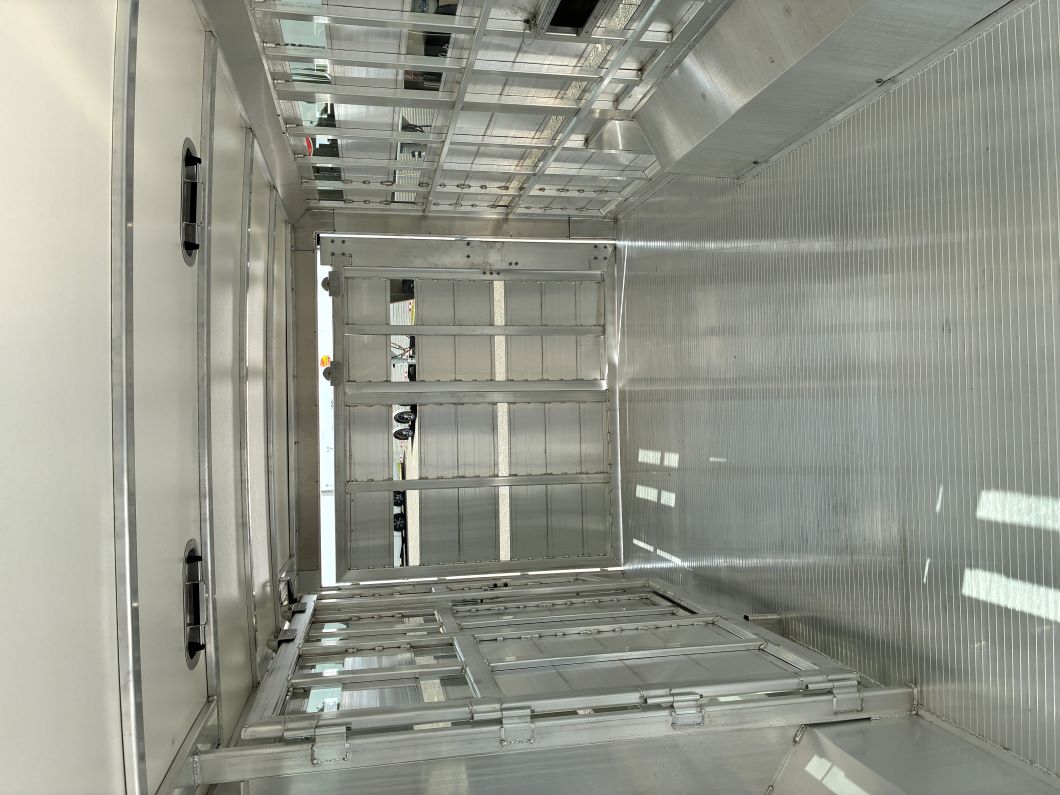

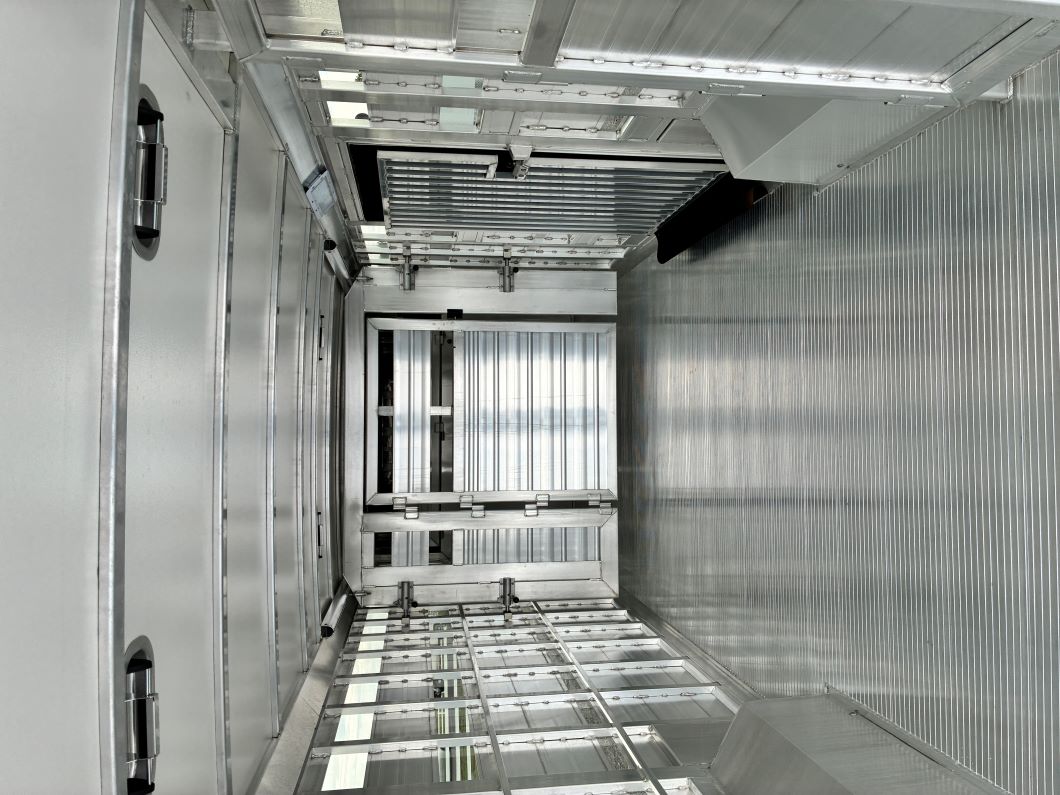

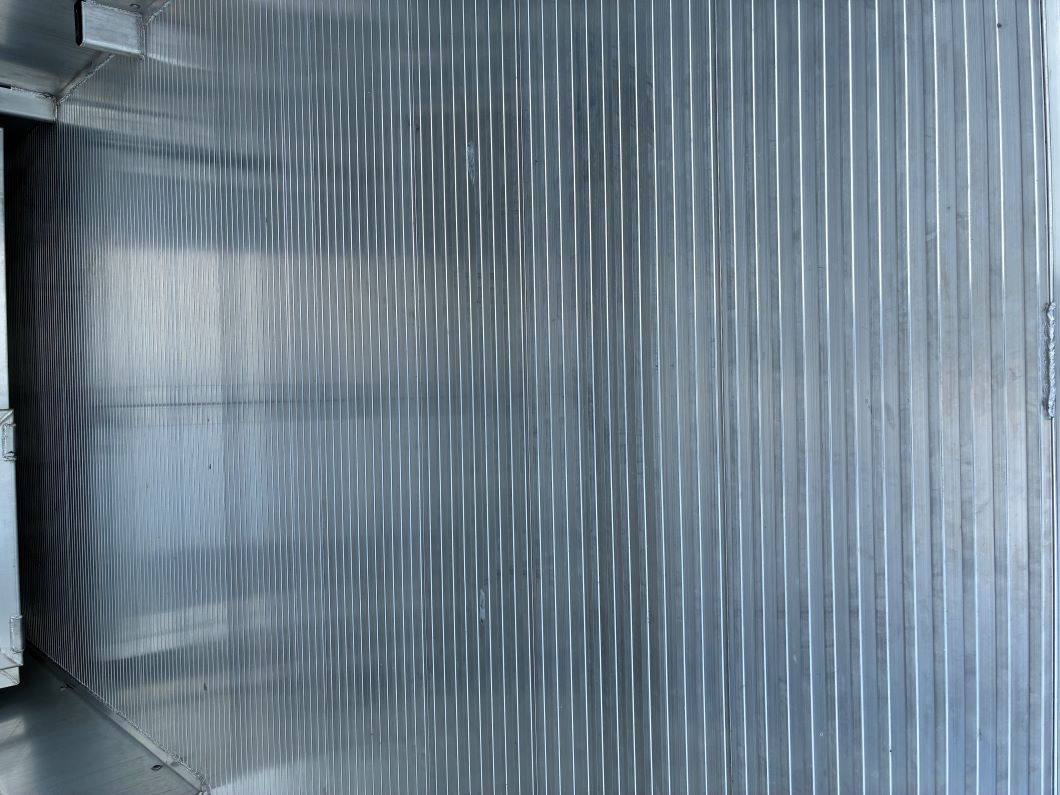

• Insulated Ceilings! 1/2" Thick Gel Coated HIP & Fiberglass
• 1 3/8" x 2" Wall Post on 12" Spacings Center to Center
• Extruded Side Slats w/ Hollow Cores

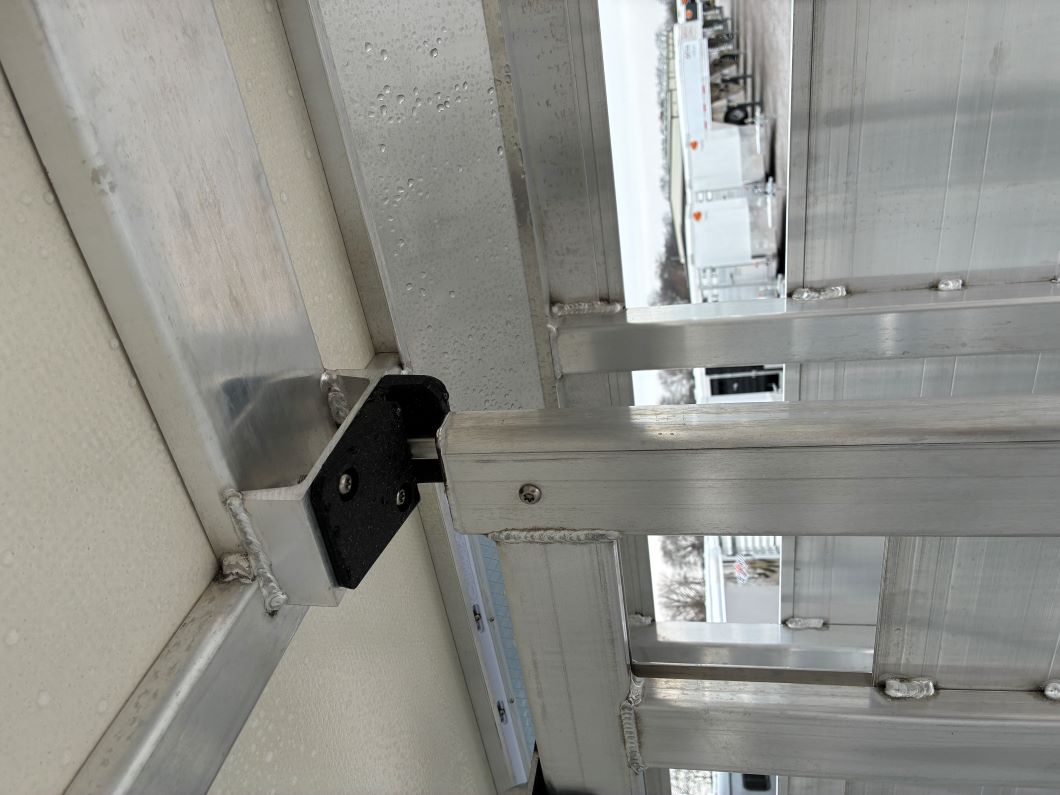

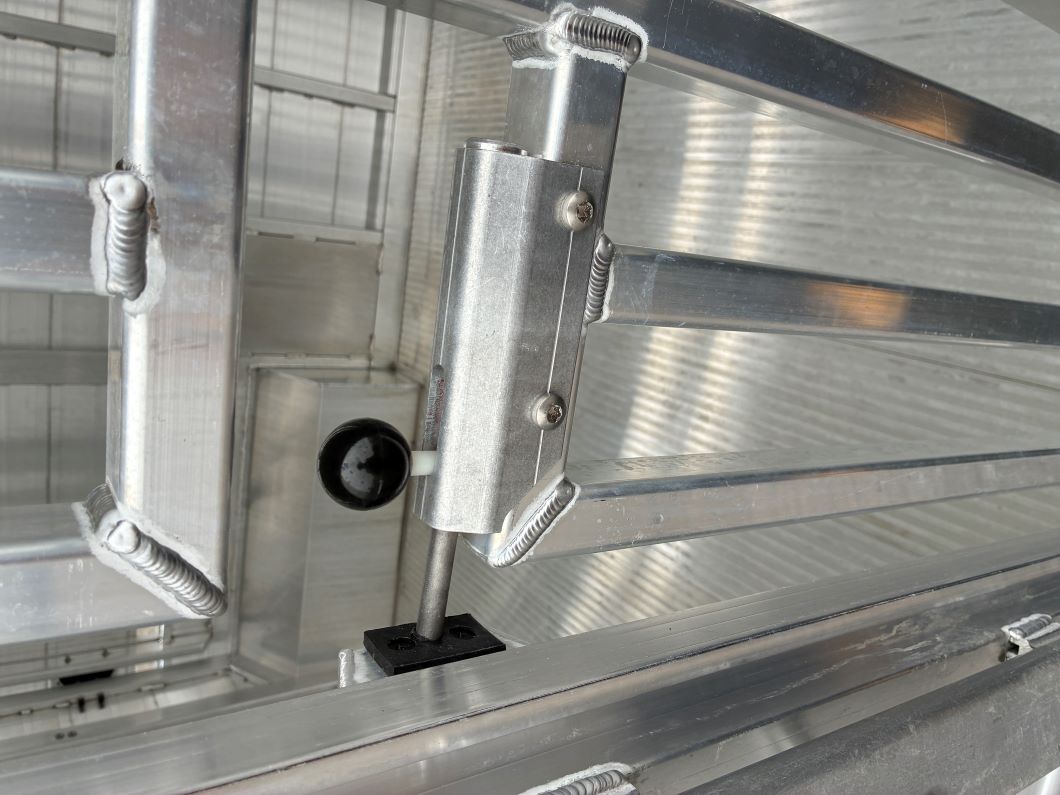

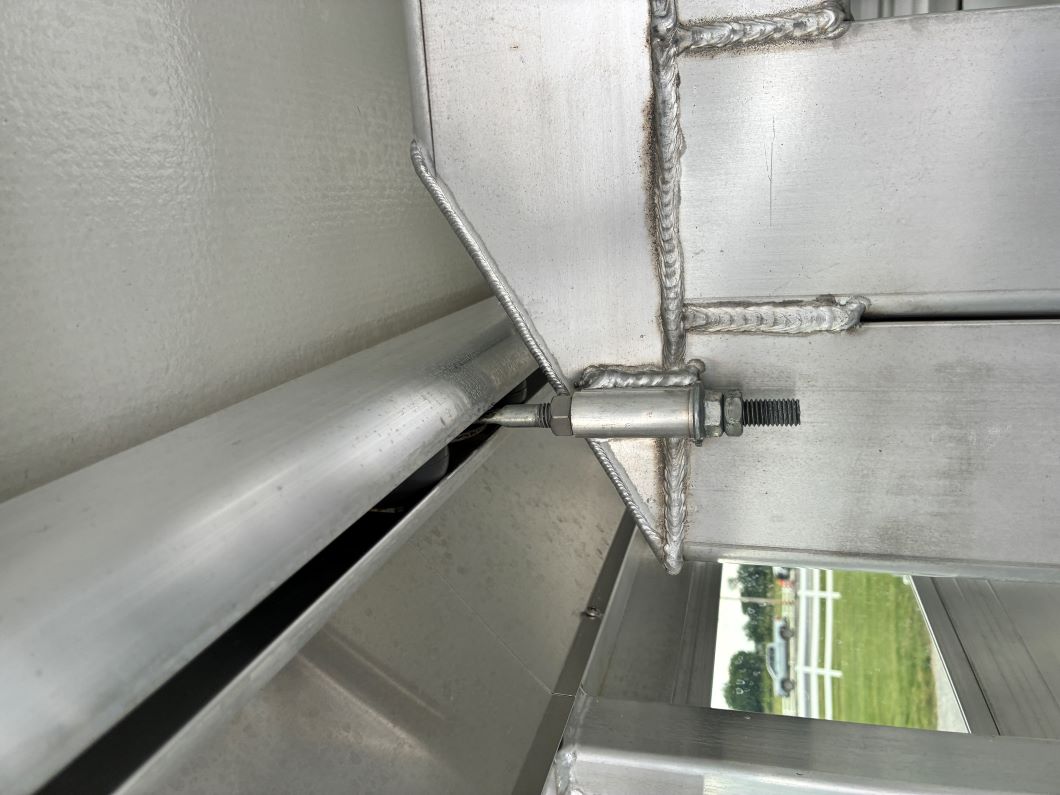

• Welded Hinges w/ Grease Fittings
• 4 LED Tail Lights w/ Built In Reverse Lights
• LED Side Floodlights
• LED Rear Loading Lights

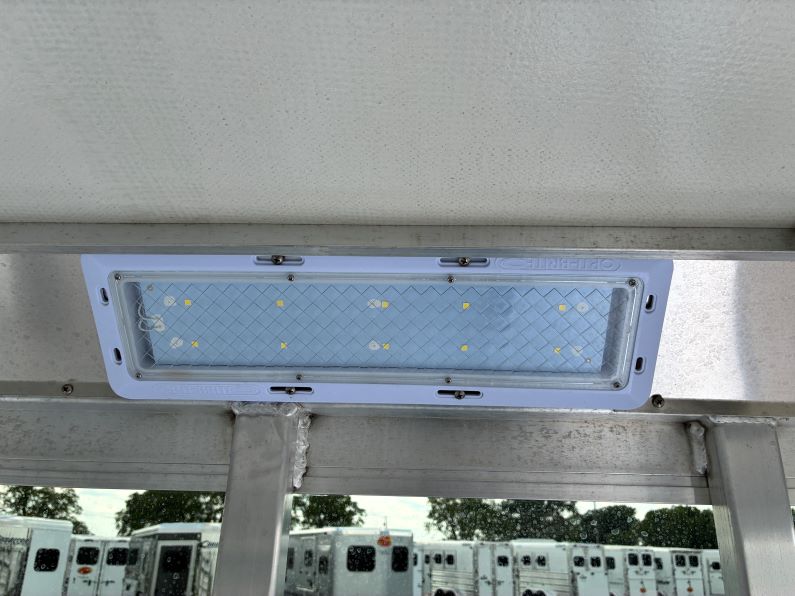

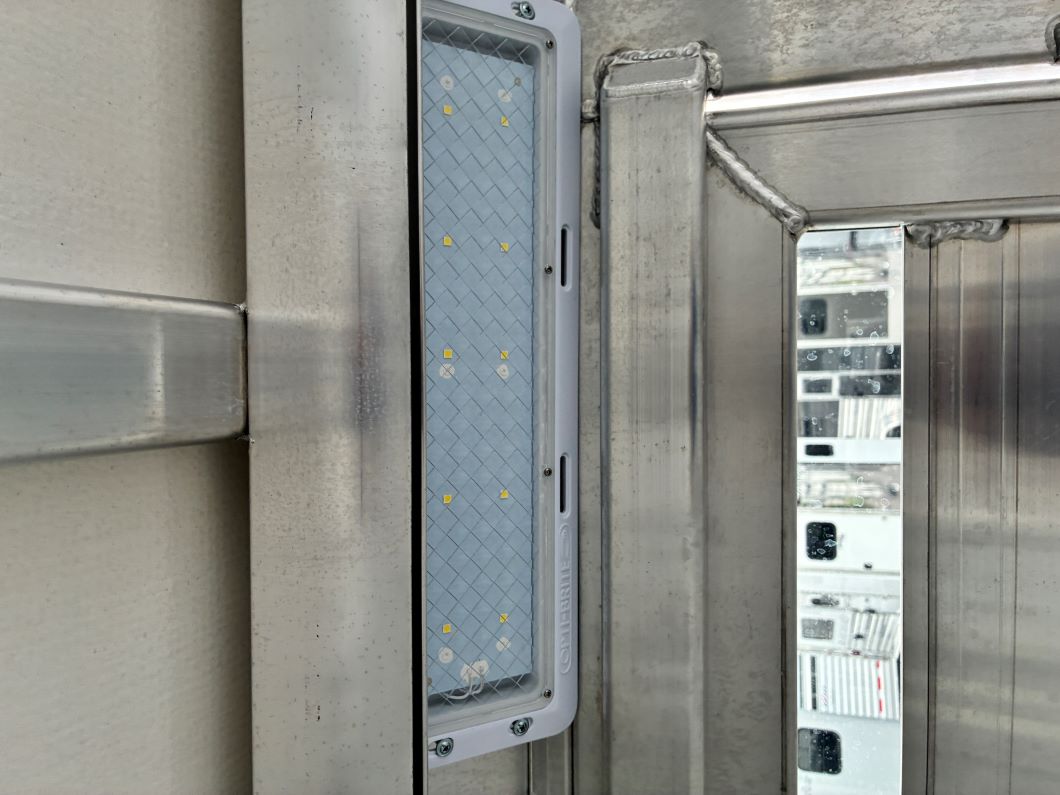

• OptiBrite LED Interior Lights

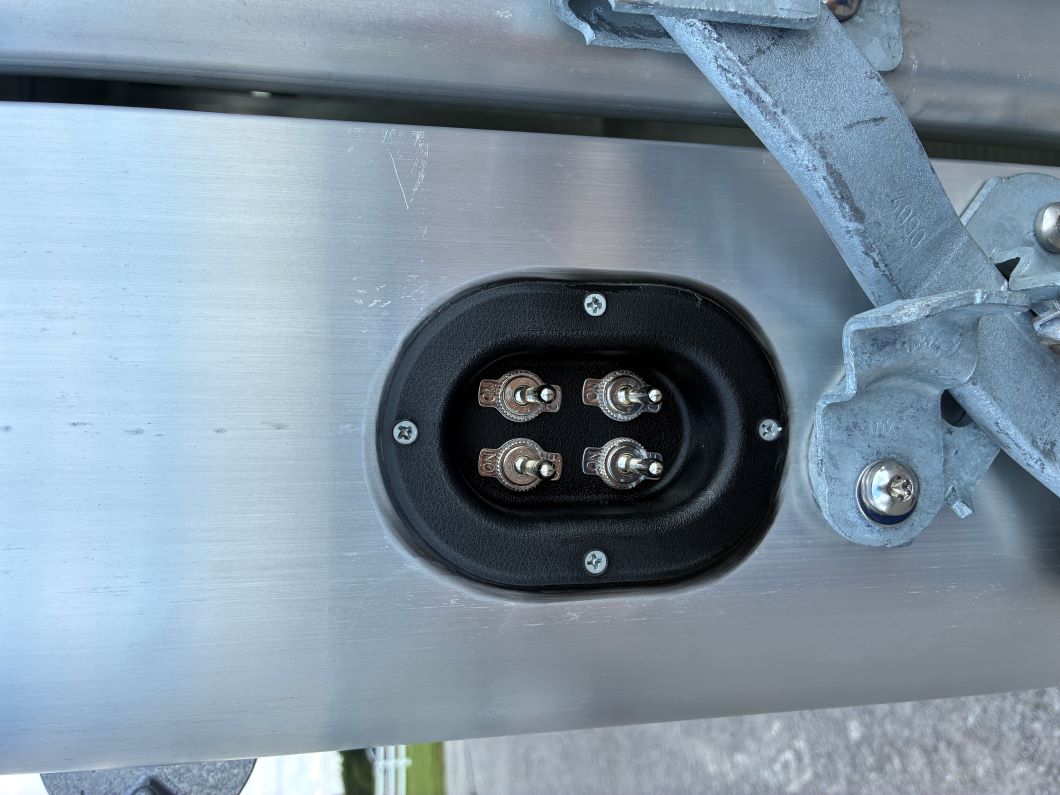

• Access Panels to Lights in Rear of Trailer
